To HappyModel Mobula8 HD 2S 85mm Digital Micro FPV Whoop Drone Walksnail / HDZERO / O3 CrazyF405 ELRS EX1103 KV11000 UART 2.4G

O3 / O3 Lite pre-sale until June 26th

Walksnail / HDZERO pre-sale until June 18th

If you need to place an order in advance please extend the shipping time to the corresponding date.

Notice: O3 air unit warranty service is undertaken by DJI according to their warranty policy, please noted. If you purchase this product you agree to this policy.

Features:

Digital HD FPV experience

New CrazyF405 ELRS HD flight controller

Powerful and Smooth

UART ExpressLRS receiver

Built-in blackbox for Gyroflow and PID Tune

Package includes:

Item Name

Qty

Mobula8 Frame

1

CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4

1

EX1103 KV11000 brushless motor

4

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

1

Option1: O3 Air unit

1

Option2: Walksnail avatar HD Mini 1S lite kit

Option3: HDZERO Whoop Lite bundle

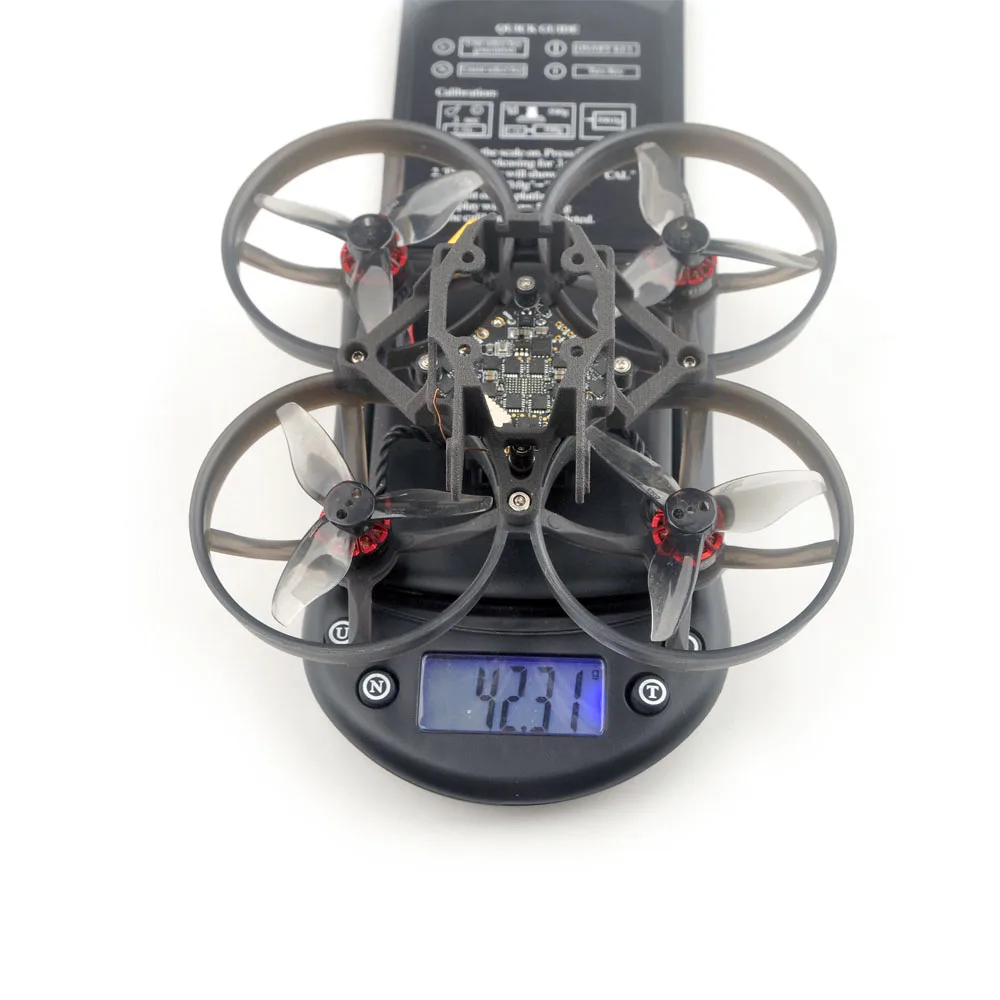

Option4: No VTX and camera version

Canopy(O3/Walksnail/HDZERO optional)

1

Screw driver

1

Spare parts specifications:

Motor

Mode: EX1103 KV11000

Configu-ration:9N12P

Stator Diamter:11mm

Stator Length:3mm

Shaft Diameter:1.5mm

Motor Dimension(Dia.*Len):13.5mm*15.5mm

Weight(g):3.8g

No.of Cells(Lipo):1-2S

Propellers

Weight:0.88g

Material: PC

Pitch:2.3inch

Props Dia:52.17mm

Center Thickness:5mm

Center Hole Dia:1.5mm

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)

GYRO Sensor: BMI270 (SPI connection)

Mount hole size: 25.5mm*25.5mm

Power supply: 1-2S battery input (DC 2.9V-8.7V)

Built-in 12A(each) Blheli_S 4in1 ESC

Built-in Serial ExpressLRS 2.4G

Built-in BMP280 Barometer

Built-in 8MBp blackbox

Built-in voltage meter sensor , voltage meter scale 110

Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)

Support BLHeli_S Bluejay firmware

Factory firmware: Bluejay ESC V0.19

Firmware target: Z-H-30

Default protocol: DSHOT300

When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

RF Frequency: 2.4GHz

Antenna: enameled copper wire 31mm length

Telemetry output Power: <;12dBm

Default firmware version: ExpressLRS V3.0.1

Firmware target: HappyModel EP 2400 RX

Could update firmware via ExpressLRS configurator

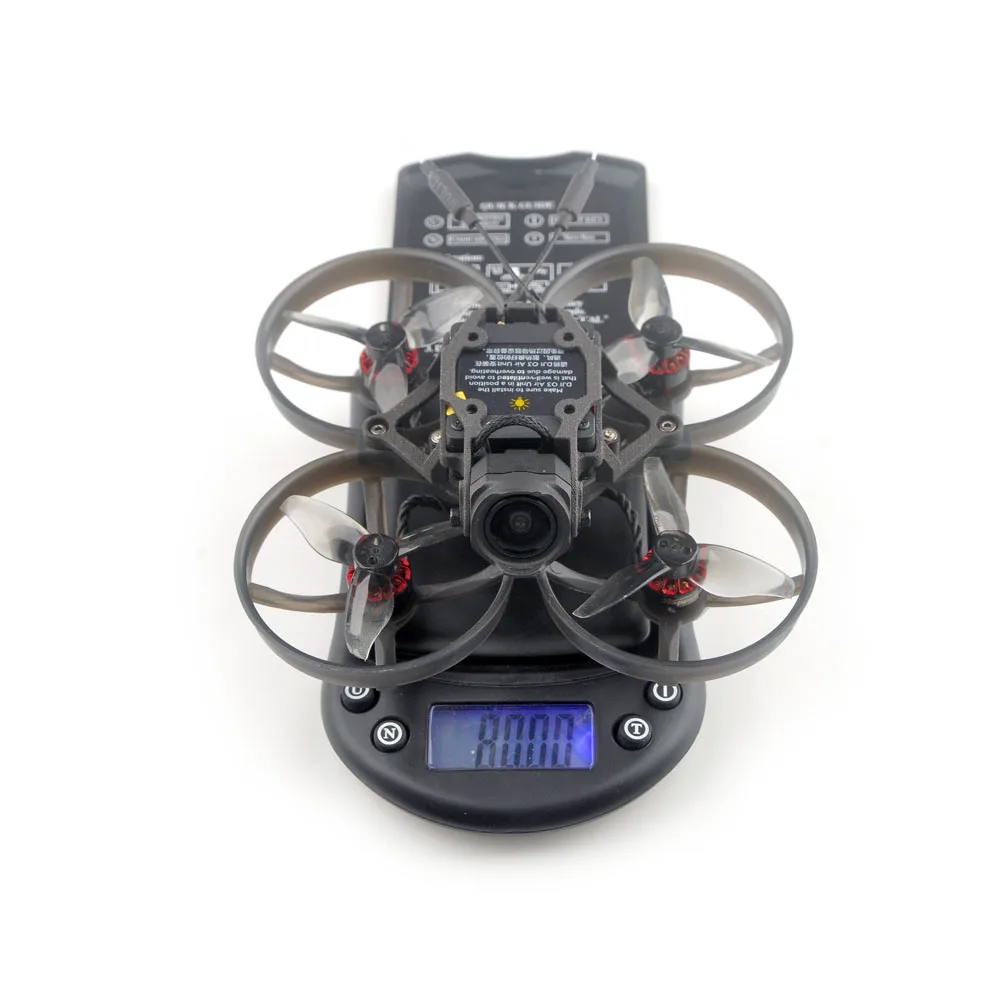

O3 Air Unit

Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2

D-Cinelike mode for Vivid Colors

Flagship O3+ Video Streaming

Customizable Canvas Mode

155° Super-Wide FOV

1/1.7-Inch Sensor

Compact in Size

Walksnail version

Camera

Model Avatar lite camera

Image Sensor 1/2.7''1nch

Resolution 1080P/60fps,720P/120fps,720P/60fps

Ratio 16/9 4/3

Lens 2.1mm

FOV 170°

Aperture F2.0

Shutter Rolling Rolling shutter

Min.Illumination 0.001Lux

Weight 1.8g

Dimensions 14*14*16mm

VTX

Model Avatar mini 1s module

Communication Frequency 5.725-5.850GHz

Transmitter Power (EIRP) FCC:<;25.5dBm;CE:<;14dBm;SRRC:<;20dBm;

MIC:<;25dBm

I/O Interface JST1.0*6(Power in)JST0.8*4(USB)

Mounting Holes 25.5*25.5mm

Dimensions 30*30*6.5mm

Storage 8G

Recording 1080p/720p

Weight 5.1g

Operating Temperature -20-40

Channels 8

Wide Power Input 3.1V-5V

Supported FC System Betaflight

OSD Canvas mode

Bitrate 25mbps 50mbps

Latency Average delay 22ms

Antenna IPEX

HDZERO Version

HDZero Nano Lite Camera

14x16x11 mm

1.5gram

0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor

Excellent low light performance

Fov:

4:3: D:130° H:108° v:84°

16:9:D:122° H:108° V:65°

HDZero Whoop Lite VTX

1-3S Input

25mW/200mW RF Output-SmartAudio Support

25.5×25.5 M2 Soft Mounting- Antenna Retention

Removable Shielding Box- 32.5×32.5mm(29x29mm inner)

4.5grams/4mm Thickness (without shielding)

==========

Hign-concerned Chemical : none

Max Wind Speed Resistance : <;10km/h

Max Takeoff Weight : <;1kg

Equipped with Aerosol Spraing System/Spread Tank Volume : no

Video Maximum Resolution[Pixel X Pixel] : 1080i/P(1920*1080)

Category : Camera Drone

Aircraf Operating Frequency : 2.4GHz,5.8GHz

Drone Weight : 100G

GPS : No

Connectivity : APP Controller,Remote Control

Flight Time : others

Sensor Size : 1/1.28 Inches

Camera Integration : Camera Included

Camera Features : 1080p HD Video Recording

Origin : Mainland China

Aerial Photography : Yes
